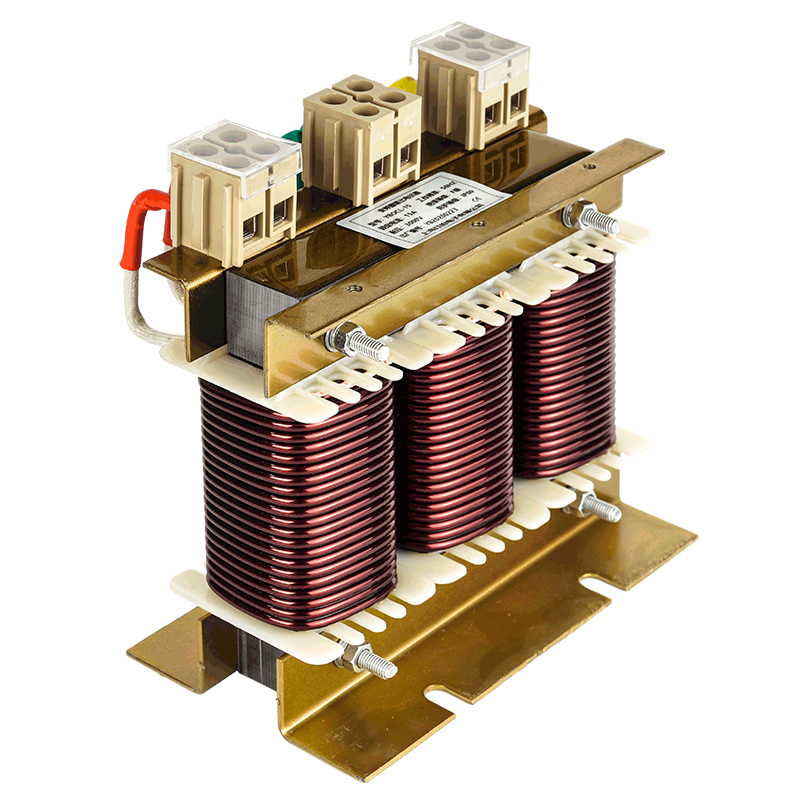

◆产品及应用 Products and appications
1、输入交流电抗器接在电源和变频器之间的,它能限制电网电压突变和操作过电压引起的电流冲击。
The input AC reactor is connected between the power supply and the inverter. It can limit the current impact caused by the sudden change of the grid voltage and the operating overvoltage.
2、有效的保护变频器并能够改善变频器的功率因数,抑制变频器输入电网的谐波电流;
Effectively protect the inverter and improve the power factor of the inverter, and suppress the harmonic current of the inverter input to the power grid;
3、输入交流电抗器限制以谐波形式出现的电路反馈。
The input AC reactor limits the circuit feedback in the form of harmonics.
4、它们还可以降低因为转换直流连接电容器中的输入整流器而导致的交流电流及其频率。
They can also reduce the AC current and its frequency caused by switching the input rectifier in the DC link capacitor.

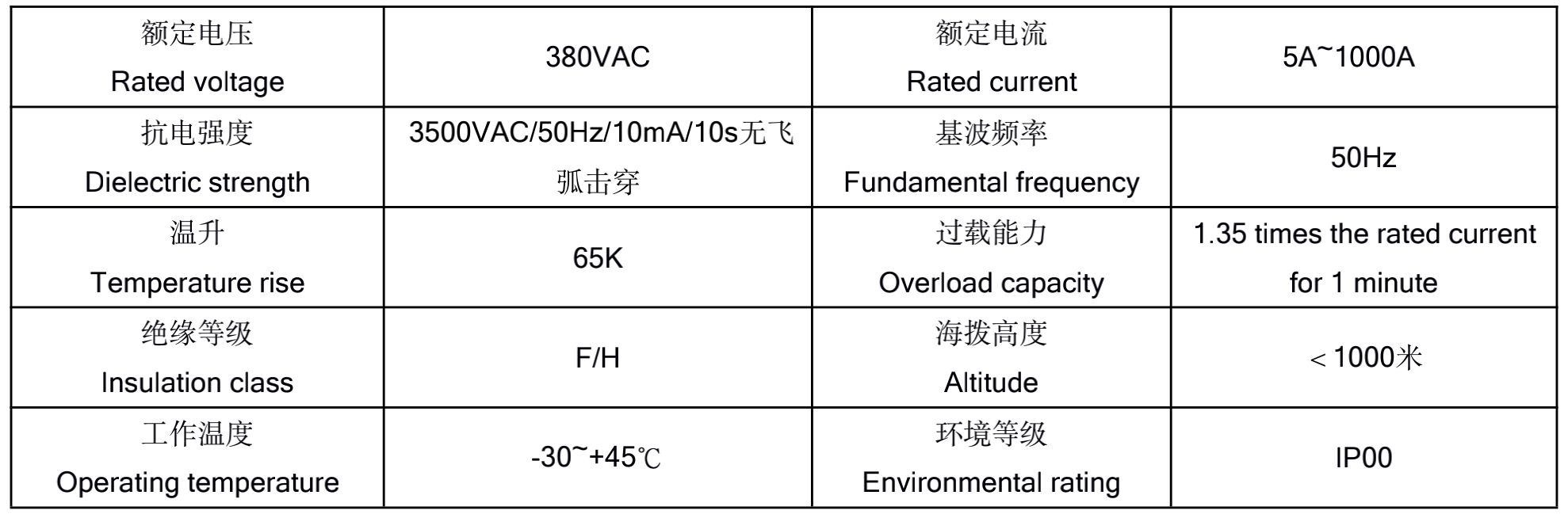

◆ 技术参数Technical parameters
下列参数为常规产品的参数,括号内的数据为可以按要求达到的参数,但需要在订购前说明。
The following parameters are parameters of conventional products

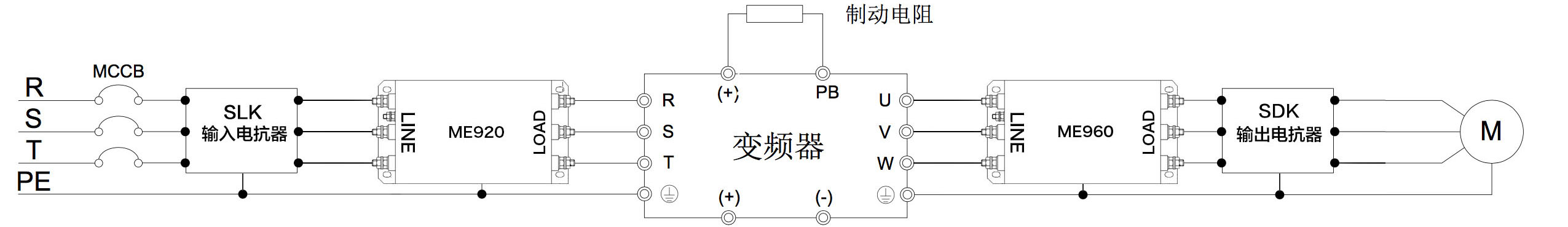

◆ 应用示意图Application diagram

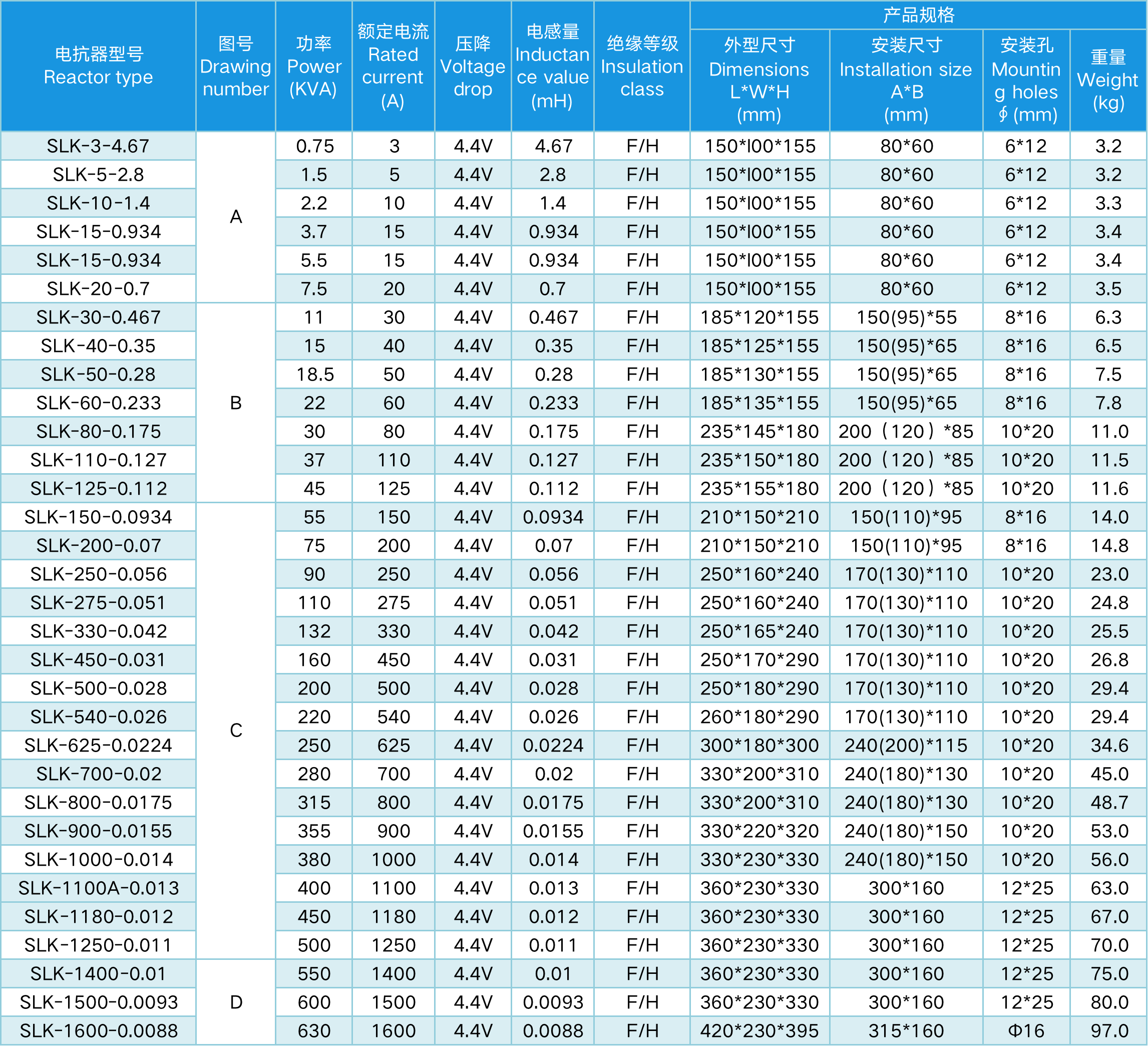

◆ 产品列表Product list
下列产品尺寸仅供参考,如有变动恕不另行通知
The following product dimensions are for reference only and are subject to change without notice.

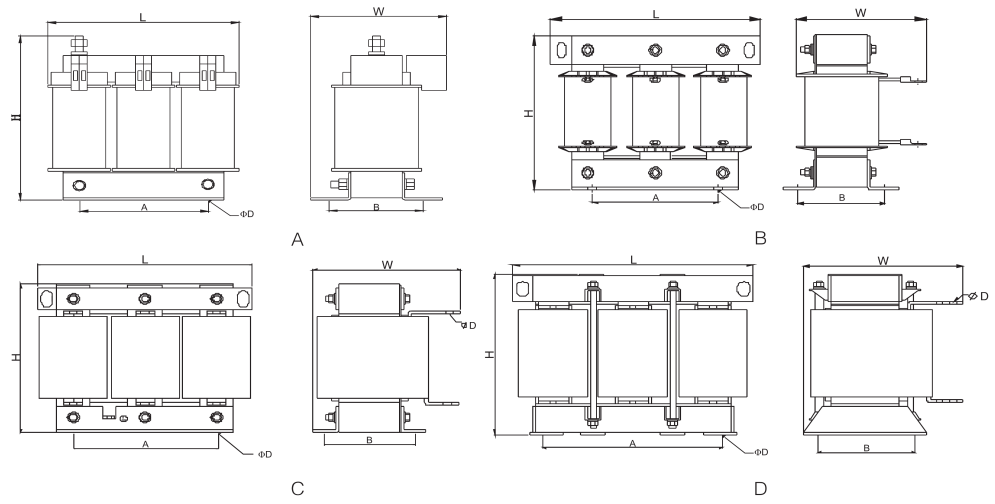

◆结构示意图Schematic

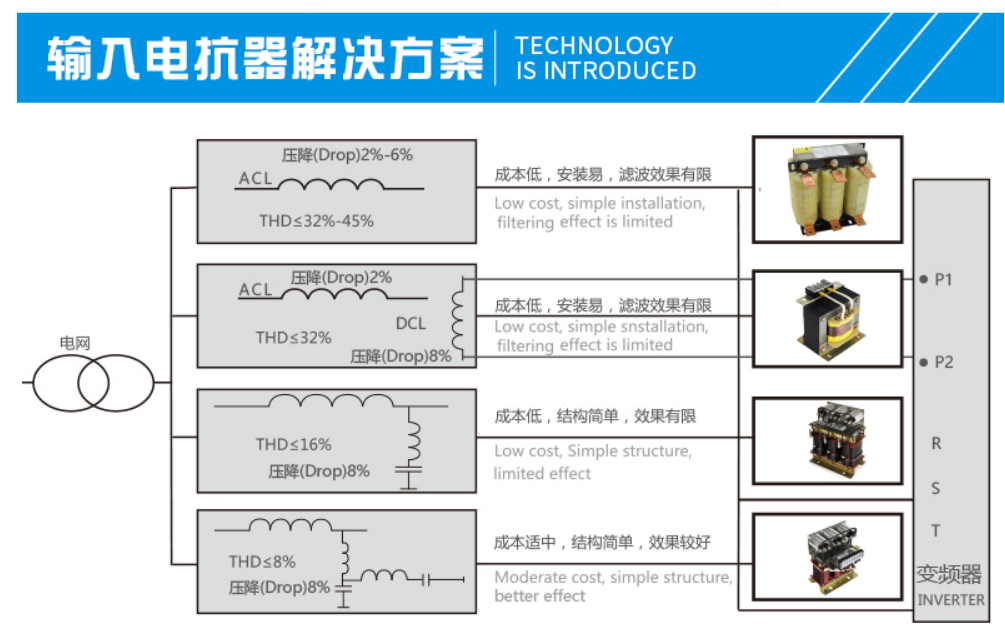

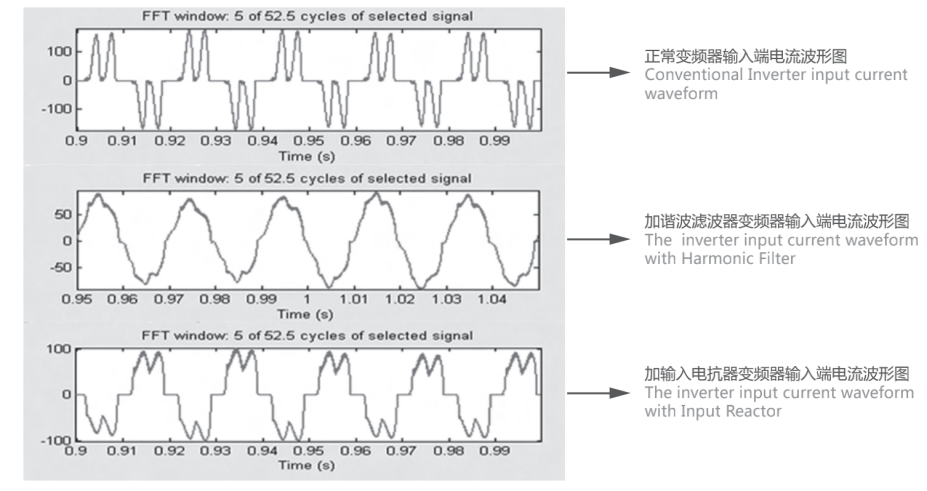

◆ 效果示意图Effect diagram
