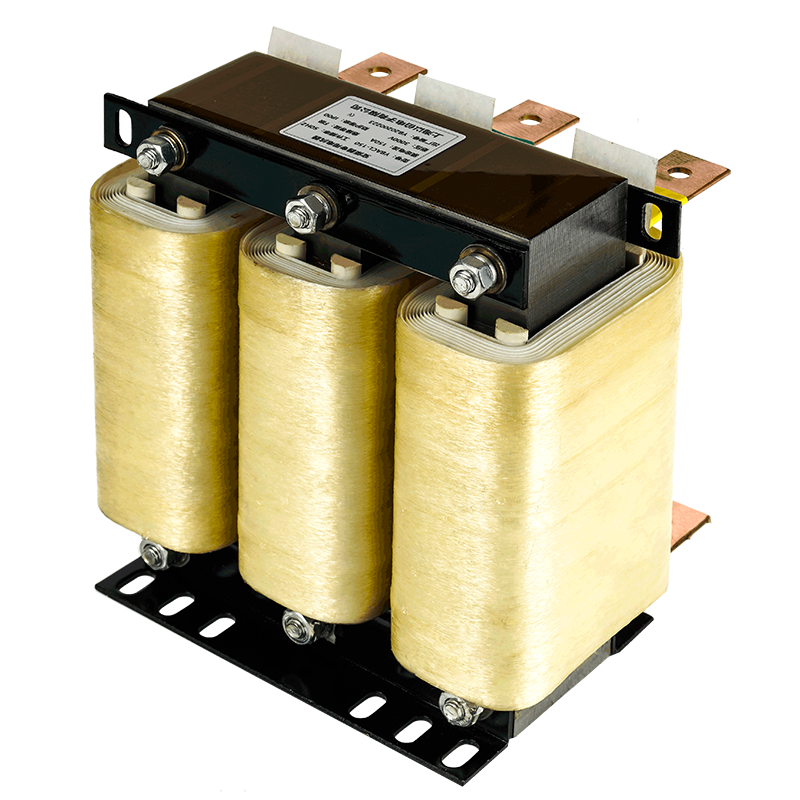

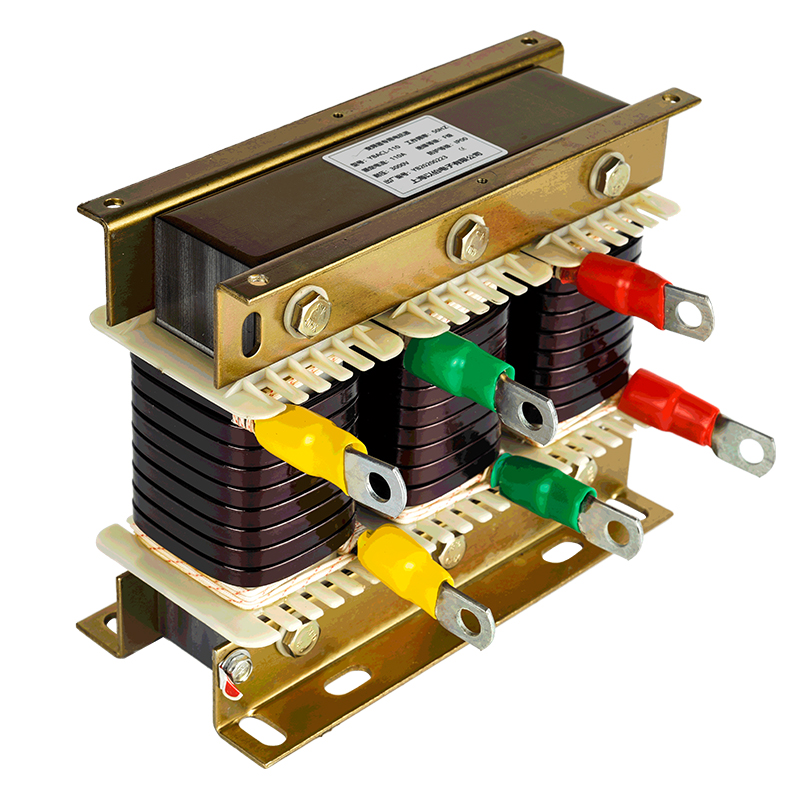

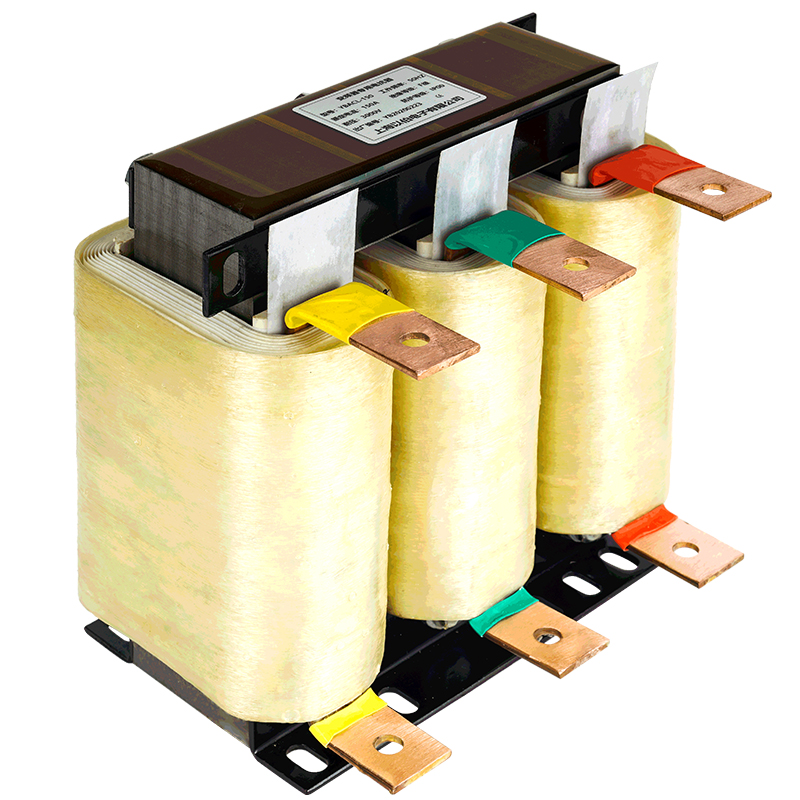

产品介绍
◆产品及应用 Products and appications
1、输出交流电抗器用于变频器的负载侧，电机电流流经这些电抗器。
The output AC reactors are used on the load side of the inverter, and the motor current flows through these reactors.
2、输出交流电抗器补偿长电缆的电容性电荷反转电流，用于平滑滤波。
The output AC reactor compensates the capacitive charge reversal current of the long cable for smooth filtering.
3、降低瞬变电压dv/dt，延长电机寿命。
Reduce the transient voltage dv/dt and extend the life of the motor. To
4、降低电机的噪音，降低涡流损耗、降低输入高次谐波造成的漏电流。
Reduce the noise of the motor, reduce the eddy current loss, and reduce the leakage current caused by th e input high-order harmonics.
5、保护变频器内部的功率开关器件。
Protect the power switching devices inside the inverter.

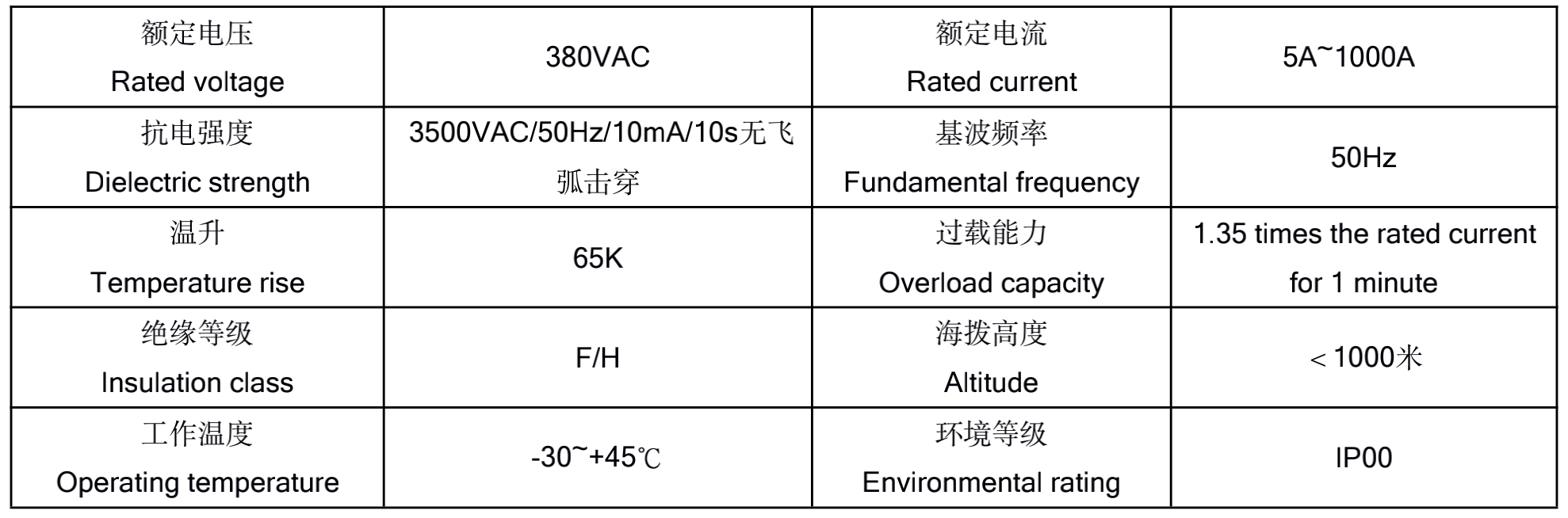

◆ 技术参数Technical parameters
下列参数为常规产品的参数，括号内的数据为可以按要求达到的参数，但需要在订购前说明。
The following parameters are parameters of conventional products

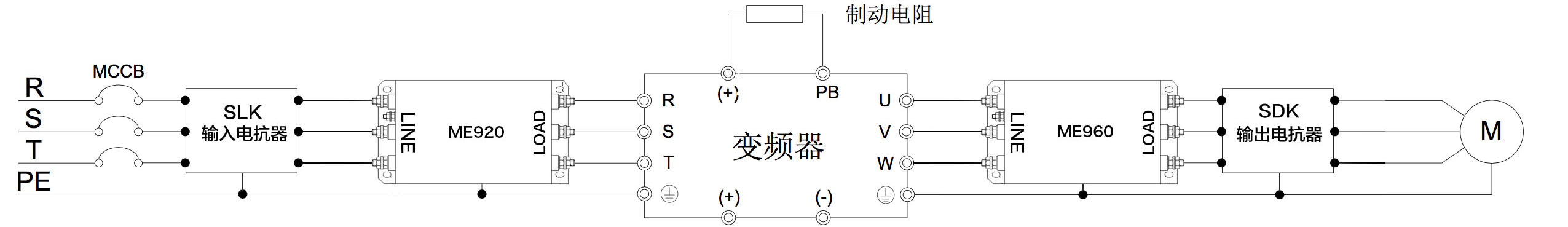

◆ 应用示意图Application diagram
◆ 产品列表Product list
下列产品尺寸仅供参考，如有变动恕不另行通知
The following product dimensions are for reference only and are subject to change without notice.

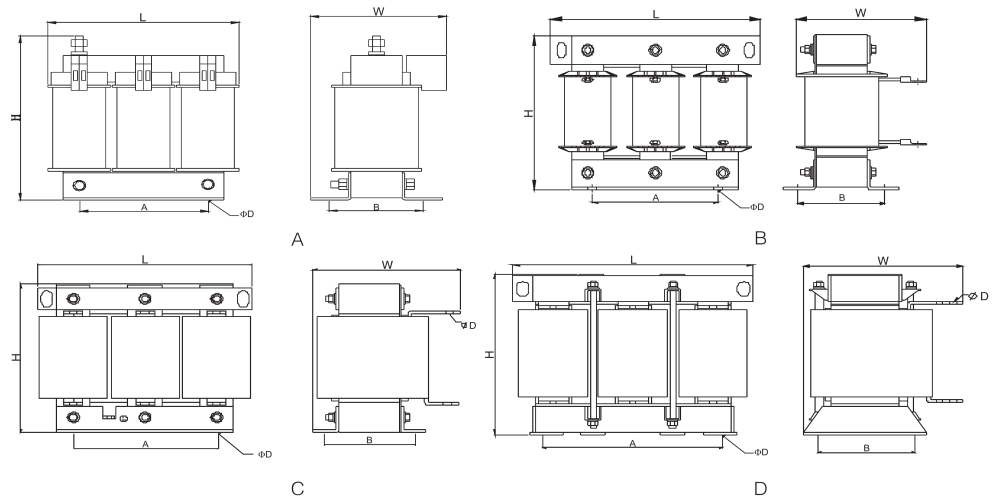

◆结构示意图Schematic

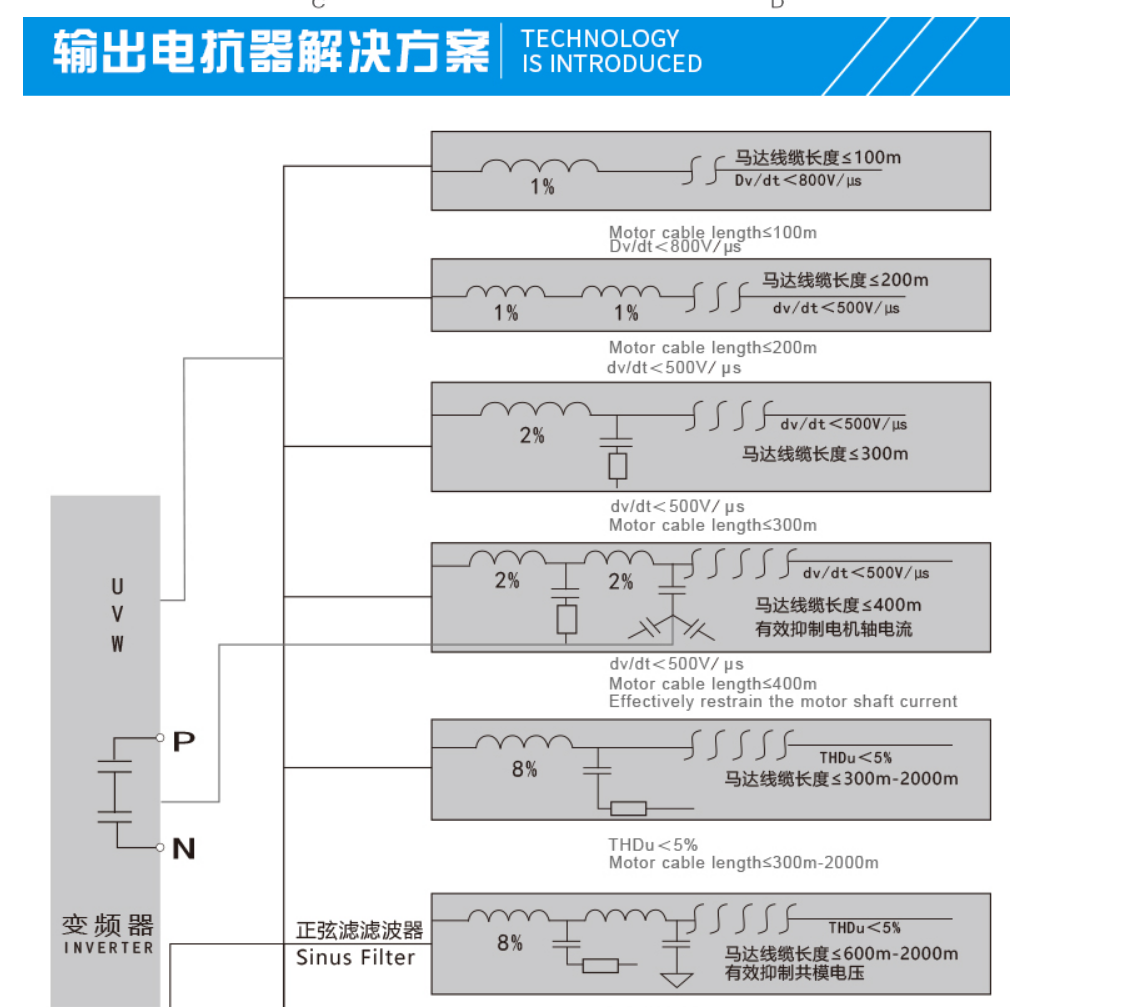

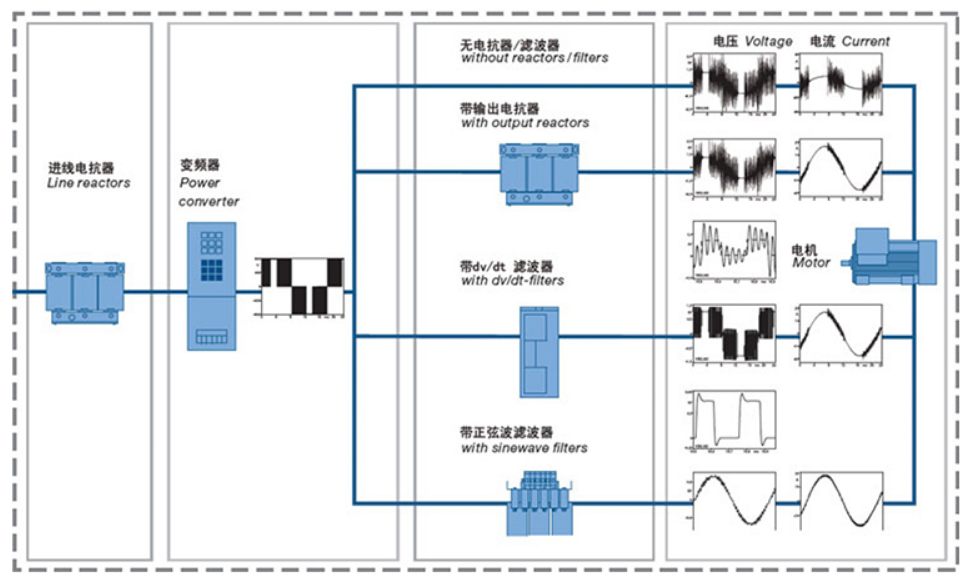

◆ 效果示意图Effect diagram
